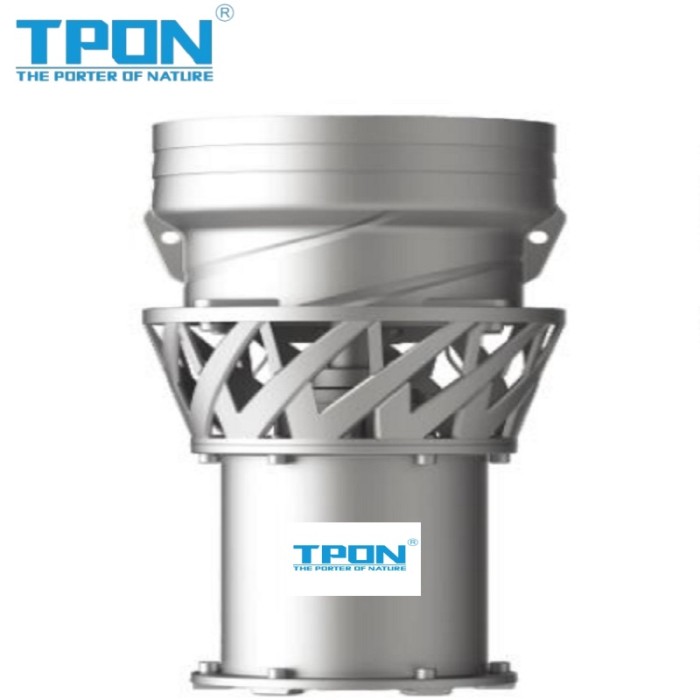

ACDC oil-immersed submersible pump | Environmental protection and enerygy saving | Supporting OEM,ODM

Categories	AC/DC oil-immersed submersible pump
Brand	TOPN Solar Water Pump Manufacturer
Model	TPZQY-AC/DC series
Material	stainless steel
Type	AC/DC oil-immersed Submersible pump
Certificate	CE, ISO9001
Warranty	18months
MOQ	1 set
FOB port	Ningbo/Shanghai
Terms of Payment	L/C, T/T, Paypal
Update Time	Apr 24,2025

Detail Information

AFTER-SALES SERVICE AND STOCK

Advantages of AC/DC oil-immersed submersible pump :

1.Full power range coverage

The brand-new oil-immersed pump series has power ranging from 4 kilowatts to 22 kilowatts, fully meeting the demands of various application scenarios from light industry to heavy industry. Whether it is a small workshop or a large manufacturing plant, this oil-immersed pump can provide stable and powerful power support, ensuring efficient operation under various working conditions.

2.Made of 304 and 316 stainless steel

The pump head and impeller of this oil-immersed pump are precisely cast from 304 stainless steel, and all the motor barrel screws are made of 316 stainless steel. It has excellent corrosion resistance and wear resistance, and can maintain long-term stable operation even in harsh working environments, significantly extending the product's service life and reducing maintenance costs.

3.Design of External controller

The oil-immersed pump is specially equipped with an external controller, featuring a simple and intuitive design and convenient operation. Even first-time users can quickly get started, significantly improving work efficiency and meeting the demands of modern industry for intelligence and convenience.

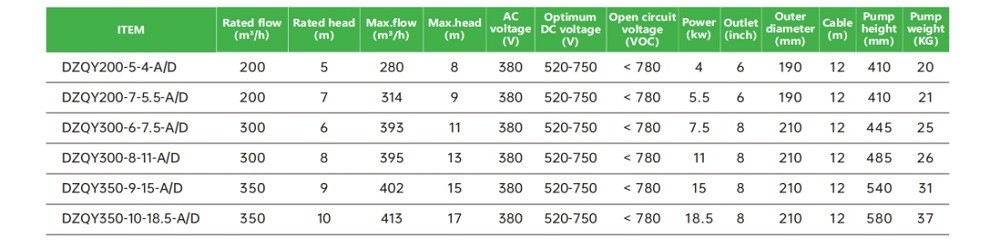

TECHNICAL DATA

PERFORMANCE CURVES

Applications of Best Solar Powered Water Pump For Irrigation:

1. Solve domestic drinking water

2. Small scale service industries

3. Agriculture and garden irrigation

How to Choose the Correct Solar Hydroponic Water Pump?

Head Calculate:

1. Distance of 'B+C+D/10' if have a water tank

2. Distance of 'B' if without water tank

Flow Calculate:

How much water per hour or per day do you want?

Selecting the solar pump model that meets your requirements against the pump model number table.

How to Connect the Solar Water Pump

oil-immersed submersible pump Connection diagram

Working Environment and Electrical Property

Controller and Pump Matching Method
Controller Model	Adaptable Pump	Max. Input Current(A)	Max. Open Circuit Viltage(V)	Optimum MPPT Voltage Range(V)	Working Temperature(°C)
TP-24	Rated 24V Pump	17	<50	30-48	-15-60
TP-48	Rated 48V Pump	17	<100	60-90	-15-60
TP-72	Rated 72V Pump	17	<150	90-120	-15-60
TP-96	Rated 96V Pump	17	<200	110-150	-15-60
TP-72-A/D	Rated 72V-A/D Pump	17	<430	100-350	-15-60
TP-110-A/D	Rated 110V-A/D Pump	17	<430	110-350	-15-60
TP-200-A/D	Rated 200V-A/D Pump	17	<430	200-350	-15-60
TP-245-A/D	Rated 245V-A/D Pump	17	<430	245-350	-15-60
TP-300-A/D	Rated 300V-A/D Pump	17	<430	300-350	-15-60
TP-520-A/D	Rated 520V-A/D Pump	17-56	<430	520-650	-15-60
TP-110-A/D	Rated 110V-A/D Pump	17	<430	110-350	-15-60
TP-200-A/D	Rated 200V-A/D Pump	17	<430	200-350	-15-60
TP-245-A/D	Rated 245V-A/D Pump	17	<430	245-350	-15-60
