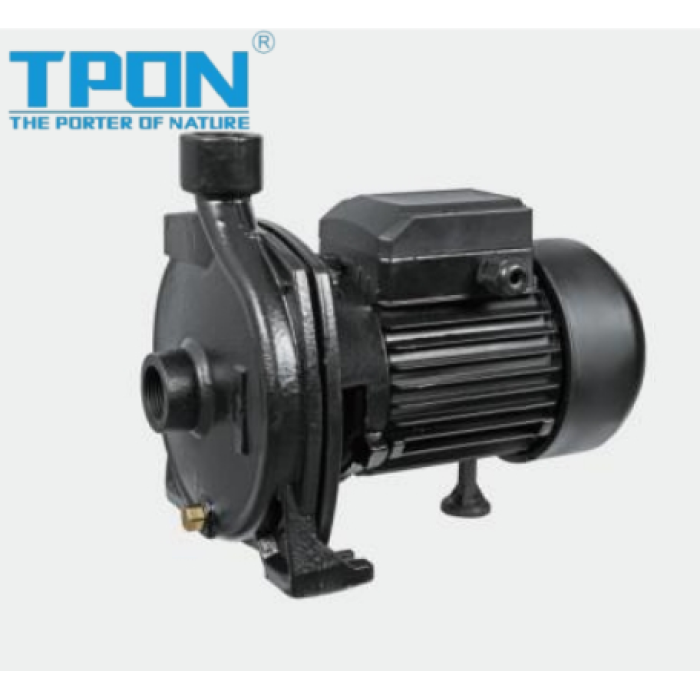

ACDC solar centrifugal submersible pump | Environmental protection and enerygy saving | Supporting OEM,ODM

Categories	AC/DC Solar Centrifugal Surface Pump
Brand	TOPN Solar Water Pump Manufacturer
Model	TPHF-AC/DC series
Material	iron
Type	AC/DC Solar Submersible pump
Certificate	CE, ISO9001
Warranty	18months
MOQ	1 set
FOB port	Ningbo/Shanghai
Terms of Payment	L/C, T/T, Paypal
Update Time	Apr 24,2025

Detail Information

AFTER-SALES SERVICE AND STOCK

Advantages of solar powered surface water pumps :

1. DC Brushless Permanent-magnetic synchronous motor for solar power submersible dc water pump to get high speed and high efficiency.

2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.

3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.

4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.

TECHNICAL DATA

PERFORMANCE CURVES

Applications of Best Solar Powered Water Pump For Irrigation:

1. Solve domestic drinking water

2. Small scale service industries

3. Agriculture and garden irrigation

How to Choose the Correct Solar Hydroponic Water Pump?

Head Calculate:

1. Distance of 'B+C+D/10' if have a water tank

2. Distance of 'B' if without water tank

Flow Calculate:

How much water per hour or per day do you want?

Selecting the solar pump model that meets your requirements against the pump model number table.

How to Connect the Solar Water Pump

Working Environment and Electrical Property

Controller and Pump Matching Method
Controller Model	Adaptable Pump	Max. Input Current(A)	Max. Open Circuit Viltage(V)	Optimum MPPT Voltage Range(V)	Working Temperature(°C)
TP-24	Rated 24V Pump	17	<50	30-48	-15-60
TP-48	Rated 48V Pump	17	<100	60-90	-15-60
TP-72	Rated 72V Pump	17	<150	90-120	-15-60
TP-96	Rated 96V Pump	17	<200	110-150	-15-60
TP-72-A/D	Rated 72V-A/D Pump	17	<430	100-350	-15-60
TP-110-A/D	Rated 110V-A/D Pump	17	<430	110-350	-15-60
TP-200-A/D	Rated 200V-A/D Pump	17	<430	200-350	-15-60
TP-245-A/D	Rated 245V-A/D Pump	17	<430	245-350	-15-60
TP-300-A/D	Rated 300V-A/D Pump	17	<430	300-350	-15-60
TP-520-A/D	Rated 520V-A/D Pump	17-56	<430	520-650	-15-60
TP-110-A/D	Rated 110V-A/D Pump	17	<430	110-350	-15-60
TP-200-A/D	Rated 200V-A/D Pump	17	<430	200-350	-15-60
TP-245-A/D	Rated 245V-A/D Pump	17	<430	245-350	-15-60
