Categories	Solar Centrifugal Surface Pump
Brand	TOPN Solar Water Pump Manufacturer
Model	TPHF-HV Series
Material	iron
Type	Solar Centrifugal Surface Pump
Certificate	CE, ISO9001
Warranty	1 year
MOQ	1 set
FOB port	Ningbo/Shanghai
Terms of Payment	L/C, T/T, Paypal
Download
Update Time	Nov 17,2024

Detail Information

AFTER-SALES SERVICE AND STOCK

Advantages of Solar Powered Surface Water Pumps For Irrigation:

1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.

2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.

3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.

4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.

TECHNICAL DATA

NO.	Model	AC Voltage(v)	Power(w)	DC Voltage(v)	Max flow(m³/h)	Max head(m)	Outlet(inch)
164	TPHF21-14-110-750-AD	85-280	750	80-430	21	14	2
165	TPHF26-15-110-1100-AD	85-280	1100	80-430	26	15	2
166	TPHF50-17-110-1500-AD	85-280	1500	80-430	50	17	3
	TPHF50-17-110-1500-HV	/
167	TPHF60-20-300-2200-AD	85-280	2200	80-430	60	20	4
	TPHF60-20-300-2200-HV	/

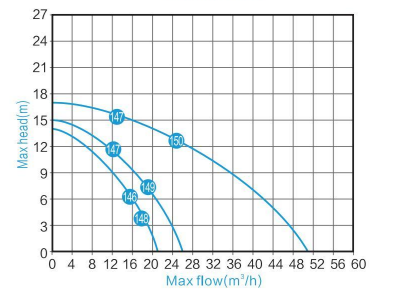

PERFORMANCE CURVES

Applications of Outdoor Solar Surface Centrifugal Pound Pumps:

1. Solve domestic drinking water

2. Small scale service industries

3. Livestock watering

4. Agricultural (garden) irrigation

How to Choose the Correct Surface Mount Solar Pump?

Head Calculate:

1. Distance of 'B+C+D/10' if have a water tank

2. Distance of 'B' if without water tank

Flow Calculate:

How much water per hour or per day do you want?

Selecting the solar pump model that meets your requirements against the pump model number table.

How to Connect the Solar Water Pump

Working Environment and Electrical Property

Controller and Pump Matching Method
Controller Model	Adaptable Pump	Max. Input Current(A)	Max. Open Circuit Voltage(V)	MPPT Voltage Range(V)	Working Temperature(°C)
TP-24	Rated 24V pump	17	<48	30-48	-15-60
TP-48	Rated 48V pump	17	<100	60-90	-15-60
TP-72	Rated 72V pump	17	<150	90-120	-15-60
TP-96	Rated 96V pump	17	<200	110-150	-15-60
TP-110-A/D	Rated 110V-A/D pump	17	<430	110-400	-15-60
TP-150-A/D	Rated 150V-A/D pump	17	<430	150-400	-15-60
TP-200-A/D	Rated 200V-A/D pump	17	<430	200-400	-15-60
TP-300-A/D	Rated 300V-A/D pump	17	<430	300-400	-15-60
TP-110-HV	Rated 110V-A/D pump	17	<430	110-400	-15-60
TP-150-HV	Rated 150V-A/D pump	17	<430	150-400	-15-60
TP-200-HV	Rated 200V-A/D pump	17	<430	200-400	-15-60
TP-300-HV	Rated 300V-A/D pump	17	<430	300-400	-15-60
