3 Inch Solar Powered Submersible Deep Well Pump | DC Irrigation Pump Livestock Cattle Manufacturers in China

Categories	3 Inch Solar Well Pump with Stainless Steel Impeller
Brand	TOPN Solar Water Pump Manufacturer
Model	3TPSC- HV Series
Material	Stainless steel
Type	3 Inch Solar Well Pump with Stainless Steel Impell
Certificate	CE, ISO9001
Warranty	18 months
MOQ	1 set
FOB port	Ningbo/Shanghai
Terms of Payment	L/C, T/T, Paypal
Download
Update Time	Nov 21,2024

Detail Information

AFTER-SALES SERVICE AND STOCK

Advantages of Best Small Solar Water Pump:

1. Wide-voltage Brushless Permanent-magnetic synchronous motor for solar power submersible dc water pump to get high speed and high efficiency.

2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.

3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.

4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.

5.Our portable lewisia solar pond water pump kit kenya is comparable to lorentz solar water pumps usa.

TECHNICAL DATA

NO.	Model	Power(w)	AC Voltage(v)	DC Voltage(v)	Max flow(m³/h)	Max head(m)	Outlet(inch)
96	3TPSC4.8-95-110-750-HV	750	/	80-430	4.8	95	1.25
97	3TPSC4.8-110-150-1100-HV	1100	/	80-430	4.8	110	1.25
98	3TPSC4.8-130-200-1500-HV	1500	/	80-430	4.8	130	1.25

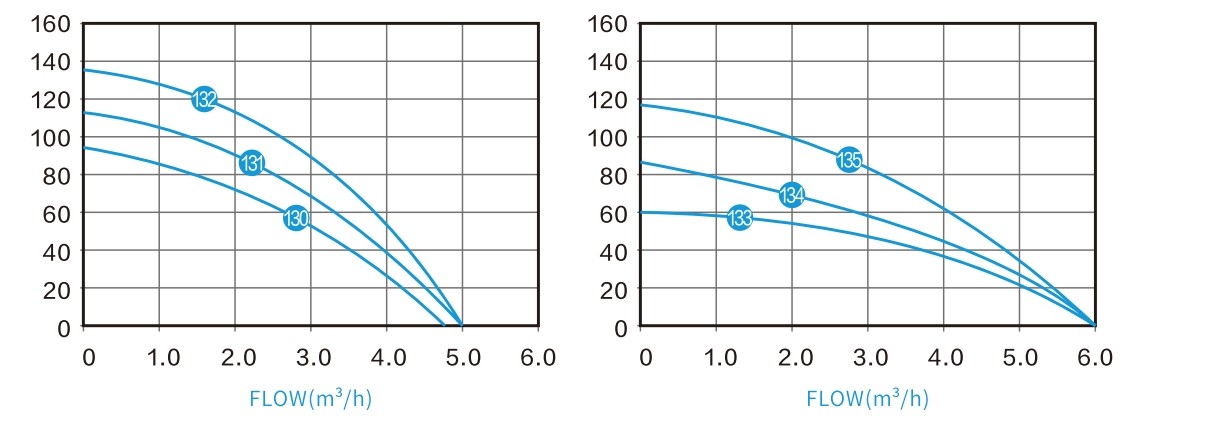

PERFORMANCE CURVES

Applications of Submersible Solar Water Pump Kit:

1. Solve domestic drinking water

2. Small scale service industries

3. Agriculture and garden irrigation

How to Choose the Correct Solar Water Pump?

Head Calculate:

1. Distance of 'B+C+D/10' if have a water tank

2. Distance of 'B' if without water tank

Flow Calculate:

How much water per hour or per day do you want?

Selecting the solar pump model that meets your requirements against the pump model number table.

How to Connect the Solar Water Pump

Working Environment and Electrical Property

Controller and Pump Matching Method
Controller Model	Adaptable Pump	Max. Input Current(A)	Max. Open Circuit Voltage(V)	MPPT Voltage Range(V)	Working Temperature(°C)
TP-24	Rated 24V pump	17	<48	30-48	-15-60
TP-48	Rated 48V pump	17	<100	60-90	-15-60
TP-72	Rated 72V pump	17	<150	90-120	-15-60
TP-96	Rated 96V pump	17	<200	110-150	-15-60
TP-110-A/D	Rated 110V-A/D pump	17	<430	110-400	-15-60
TP-150-A/D	Rated 150V-A/D pump	17	<430	150-400	-15-60
TP-200-A/D	Rated 200V-A/D pump	17	<430	200-400	-15-60
TP-300-A/D	Rated 300V-A/D pump	17	<430	300-400	-15-60
TP-110-HV	Rated 110V-A/D pump	17	<430	110-400	-15-60
TP-150-HV	Rated 150V-A/D pump	17	<430	150-400	-15-60
TP-200-HV	Rated 200V-A/D pump	17	<430	200-400	-15-60
TP-300-HV	Rated 300V-A/D pump	17	<430	300-400	-15-60
